透光式折射濃度儀
型號：PIOX R400
規格：
Measurement range : nD: 1.3 ...1.7, °Brix: 0 ...100
測量液體 : 濃度&密度&純度
測量精度 : nD: 0.0002 (corresponds to: 0.1 °Brix, 0.1 w%)
Operating temp. (media) : - 20 °C ... (+
產品簡介：
PIOX R - Chemical Design Variant
Process Refractometer for the Chemical Industry
測量液體的 : (Concentration) 濃度&(Density)密度&(Purity)純度
Measuring quantities : (temperature compensated) Refractive index, media temperature,
° Brix (Plato, Oechsle), w%, additional quantities programmable
Measurement range : nD: 1.3 ...1.7, °Brix: 0 ...100
測量精度 : nD: 0.0002 (corresponds to: 0.1 °Brix, 0.1 w%)
Operating temp. (media) : - 20 °C ... (+ 130 °C) + 150 °C
Fluid pressure : PN 10, PN 16, on request PN 40 (depending on process connection)
防護等級 : Sensor: IP67, ATEX (IECEx) Zone 0/1, 1, 2 Transmitter: PIOX R704: IP65, ATEX (IECEx) Zone 2 optional
防爆 : PIOX R705: IP66, stainless steel enclosure, ATEX (IECEx) Zone 2 and FM Class I, Div. 2 optional PIOX R709: 19 inch rack version
Process connection : DIN/ANSI flange compatible, proprietary FLEXIM flow cell
Wetted parts, materials : Chemical Design: Stainless Steel 316Ti (1.4571)
PTFE Chemical Design: Completely PTFE
Housing material : Chemical Design: Stainless Steel 304 (1.4301)
PTFE Chemical Design: Epoxy powder coated Stainless Steel 304 (1.4301)

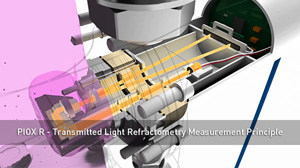

其他注意事項 : Measurement according to the patented Transmitted Light Principle
檔案下載
| 檔案名稱 | 中文介紹 | 下載處 |
| piox_R400.pdf |  |
|

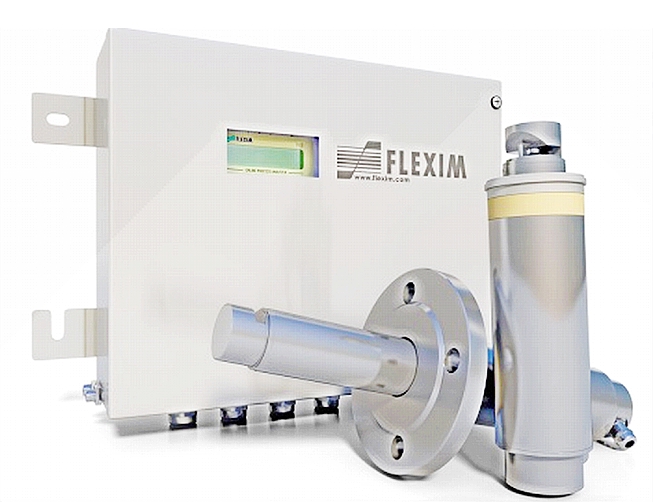

| piox_R400.jpg |  |
|

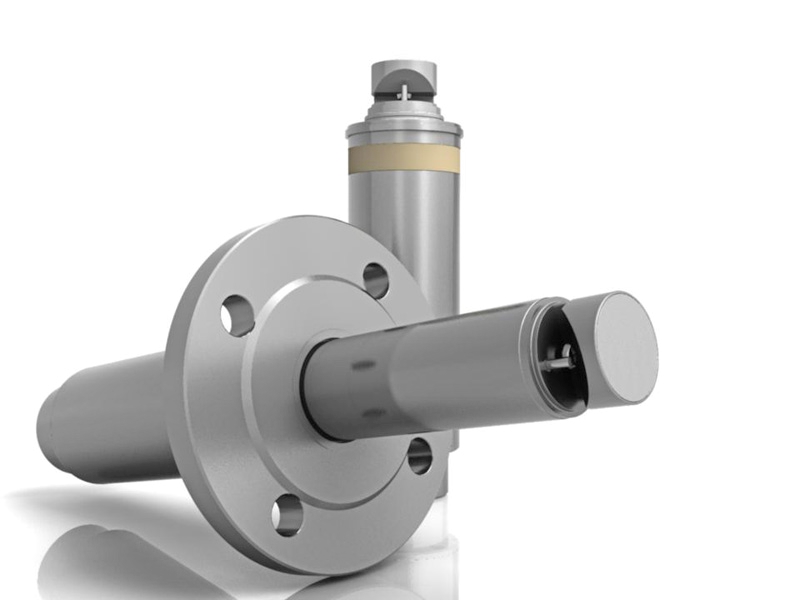

| R400.jpg |  |
|
| R400 (2).jpg | .jpg) |
